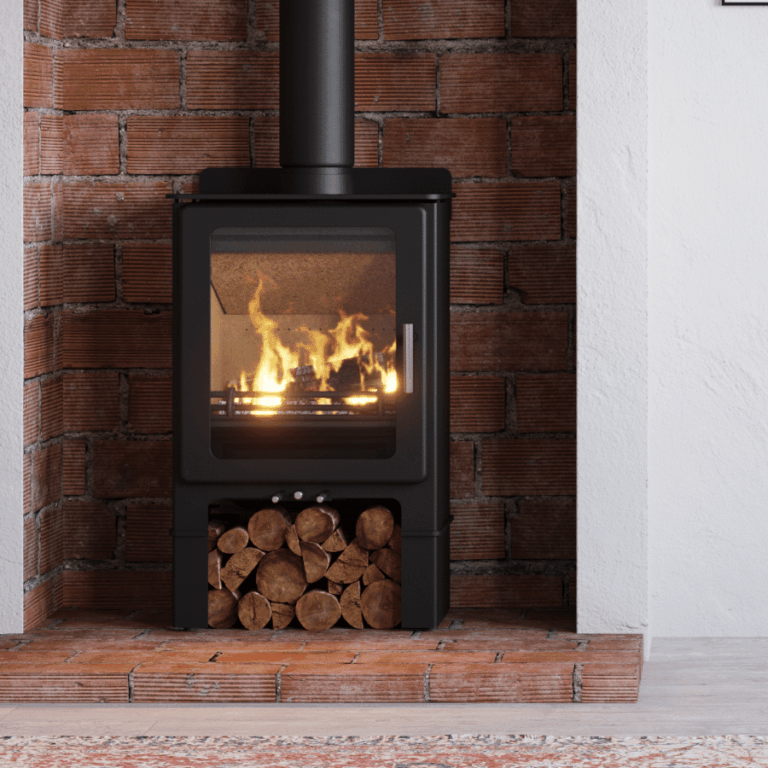

Mendip Loxton 5 SE Dual Control With Logstore Woodburning/Multifuel Stove

Mendip Loxton 5 SE Dual Control With Logstore Woodburning/Multifuel Stove

Introducing the new 5kW Dual Control  model, a remarkable evolution of the Loxton concept. Crafted with a carefully designed cast iron door, a turn-to-open handle, and an enlarged glass area, the Loxton 5 DC effortlessly complements both contemporary and traditional homes.

Retaining the key features of the entire range, such as the pre-heated secondary air wash that keeps the glass clean and free from deposits by feeding air back into the fire’s core, the Loxton DC model shares the same design elements as its larger 8-and-10kW counterparts. It includes an external air connection, enabling all combustion air to flow through an 80mm pipe connected to the appliance’s rear.

The Loxton 5 model within the Logstore range now boasts our innovative dual-control air system, allowing precise adjustment of air to perfectly suit your chimney and home.

Ecodesign Ready
Defra Approved
Height 790mm
Width 505mm
Depth 332mm
Weight 82kg
Fuel Type MF – Wood & Smokeless Fuels
Flue outlet size 125 mm
Nominal Output W: 5kW / C: 4.9kW
Output Range 3-6kW
Energy Rating A+
Efficiency W: 79.5% / C: 76.5%
CO @ 13% 0.08
Particulates mg/mo3 @13% 27
Maximum log length 350mm
Distance to combustibles rear with collar convector fitted 75mm
Distance combustible materials side 350mm
Distance to combustibles side with side convection panel fitted 250mm
Distance to centre of top flue outlet from back of stove 130mm
Height to centre of rear outlet 688mm
Optional closed combustion
Closed Combustion Outlet Size 80mm
Suitable for glass floor plate
