Schiedel 6" (150mm) Internal Diameter ICID Plus Starter Adaptor From 125mm Prima Smooth

Schiedel 6″ (150mm) Internal Diameter ICID Plus Starter Adaptor From 125mm Prima Smooth

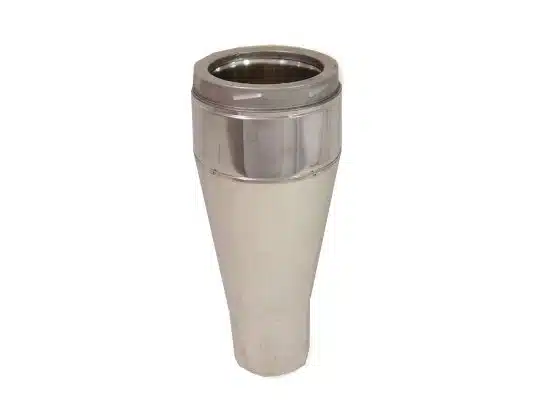

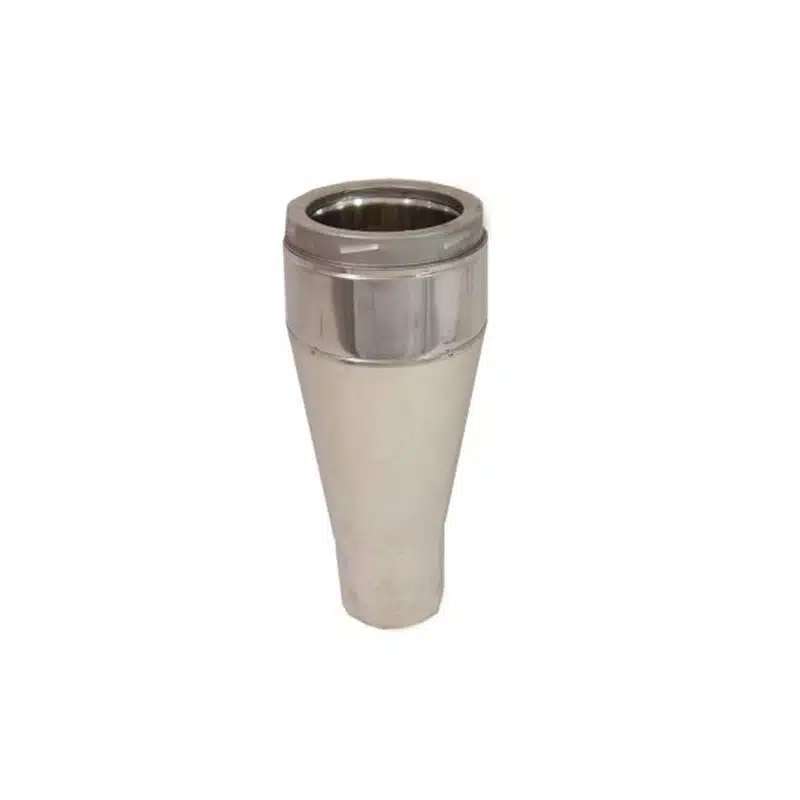

The ICID Plus 150mm Starter Adaptor is a starting component designed to connect a 125mm Prima Smooth flue to the Eco ICID 150mm twin wall flue system. Measuring 127mm in length, it provides a secure and reliable transition while maintaining consistent flue performance. The stainless steel finish offers a sleek appearance.

This adaptor is part of the ICID Plus twin wall flue system, engineered with advanced corrosion resistant construction. It features a laser welded 316L stainless steel inner liner paired with a stainless steel outer casing for long-term durability. The system is insulated with 25mm of high-density rockwool to maintain flue gas temperature, optimise efficiency, and support safe appliance operation.

All ICID Plus components connect using a twist lock bayonet jointing system and are secured with a locking band for a stable installation. The inclusion of a rubber joint seal makes the system suitable for use with condensing and biomass appliances.

The ICID Plus twin wall insulated chimney system is compatible with open and closed stoves operating at temperatures up to 450°C. The outer casing is load bearing while the inner liner can expand independently, safely accommodating thermal expansion at every joint.

About ICID Plus

ICID Plus, manufactured by Schiedel, is a versatile twin wall chimney system designed for a wide range of domestic and commercial applications. It is suitable for Dry, Wet, and Positive Pressure installations and supports multiple fuel types.

Compatible appliances include gas, oil, wood, multi fuel, traditional stoves, pellet stoves, biomass systems, mini and micro CHP units, and condensing boilers designed for positive pressure operation.

Key Features of ICID Plus

• Internal diameters available in sizes 125mm and 150mm
• Secure twist lock bayonet jointing system with locking band
• High corrosion resistance using a laser welded 316L stainless steel inner liner and stainless steel outer case
• 25mm high density mineral wool insulation to maintain flue gas temperature, improve efficiency, and reduce condensation
• Low external surface temperature for enhanced safety
• Inner liner designed to allow maximum thermal expansion and prevent moisture ingress
• Lifetime guarantee for long term peace of mind

ICID Plus delivers reliable performance, advanced engineering, and long lasting construction, making it an excellent choice for a wide range of heating and flue system applications.
