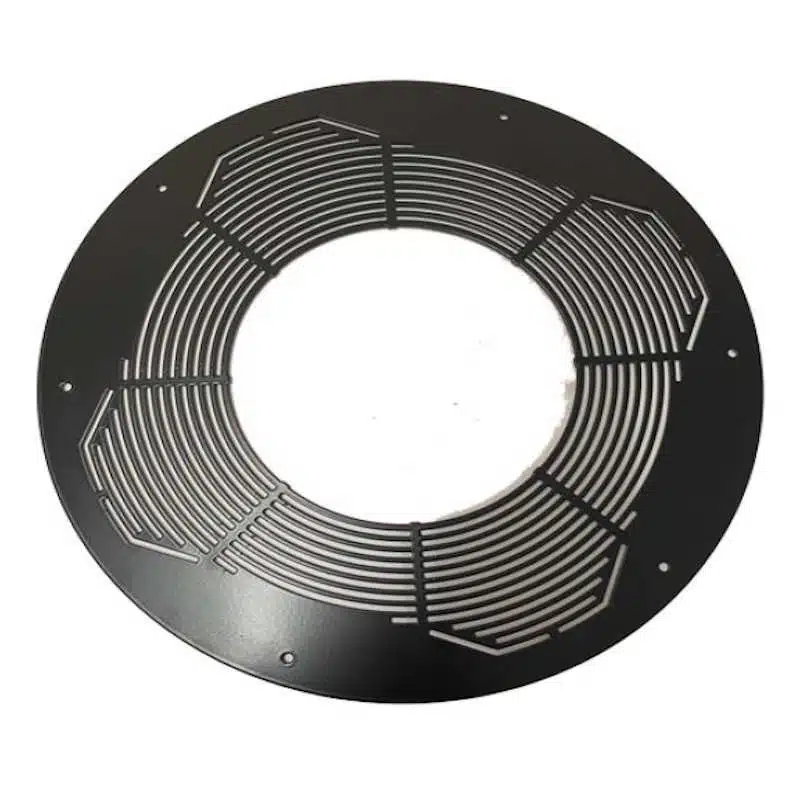

Schiedel 5" (125mm) Internal Diameter ICID Plus Ventilated Firestop Round 1PC G50 - Black

Schiedel 5″ (125mm) Internal Diameter ICID Plus Ventilated Firestop Round 1PC G50 – Black

G50 ventilated firestop plates and G50 ventilated support plates are used when a reduction from the standard 60mm to 50mm clearance to combustibles (CTC) is required within the floor space and within the shaft/enclosure/boxing in.

In a ventilated shaft using G50 or G60 round ventilated fire stops 50mm CTC is considered satisfied as long as a G50 ventilated support plate at base and a G50 ventilated fire stop plate at top of shaft is used in combination.

As with the standard G60 components there is no need to line the area within the floor cavity with plasterboard when these products are used.

About ICID Plus

ICID Plus, manufactured by Schiedel, is a versatile twin wall chimney system designed for a wide range of domestic and commercial applications. It is suitable for Dry, Wet, and Positive Pressure installations and supports multiple fuel types.

Compatible appliances include gas, oil, wood, multi fuel, traditional stoves, pellet stoves, biomass systems, mini and micro CHP units, and condensing boilers designed for positive pressure operation.

Key Features of ICID Plus

• Internal diameters available in sizes 125mm and 150mm
• Secure twist lock bayonet jointing system with locking band
• High corrosion resistance using a laser welded 316L stainless steel inner liner and stainless steel outer case
• 25mm high density mineral wool insulation to maintain flue gas temperature, improve efficiency, and reduce condensation
• Low external surface temperature for enhanced safety
• Inner liner designed to allow maximum thermal expansion and prevent moisture ingress
• Lifetime guarantee for long term peace of mind

ICID Plus delivers reliable performance, advanced engineering, and long lasting construction, making it an excellent choice for a wide range of heating and flue system applications.
