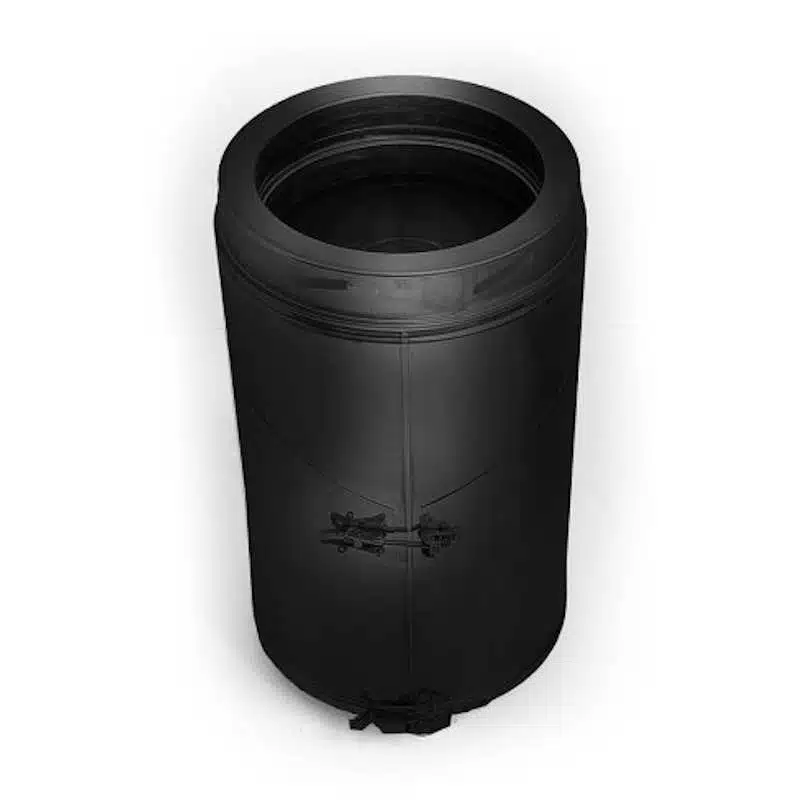

Schiedel 5" (125mm) Internal Diameter ICID Plus Inspection Pipe with Test Point (Dry Only) - Matt Black

Schiedel 5″ (125mm) Internal Diameter ICID Plus Inspection Pipe with Test Point (Dry Only) – Matt Black

The ICID Plus 125mm matt black inspection pipe with test point is installed as a standard length and provides convenient access for flue inspection and cleaning. It features an inspection hatch and includes a locking plug with a spring gasket. The installed length is 302mm. This component is suitable for dry applications only.

This inspection pipe is part of the ICID Plus twin wall flue system, which is manufactured with advanced corrosion resistant construction. It features a laser welded 316L stainless steel inner liner and a stainless steel outer casing for strength and long term durability.

The system is insulated with 25mm of high density rockwool to help maintain flue gas temperature, improve efficiency, and reduce heat loss. Components are joined using a twist lock bayonet jointing system and secured with a locking band to ensure a stable and reliable connection.

The ICID Plus twin wall insulated chimney system is designed for use with open and closed stoves operating at temperatures up to 450°C. The load bearing outer casing allows the inner liner to expand independently, accommodating thermal expansion at every joint and supporting long term system performance.

About ICID Plus

ICID Plus, manufactured by Schiedel, is a versatile twin wall chimney system designed for a wide range of domestic and commercial applications. It is suitable for Dry, Wet, and Positive Pressure installations and supports multiple fuel types.

Compatible appliances include gas, oil, wood, multi fuel, traditional stoves, pellet stoves, biomass systems, mini and micro CHP units, and condensing boilers designed for positive pressure operation.

Key Features of ICID Plus

• Internal diameters available in sizes 125mm and 150mm
• Secure twist lock bayonet jointing system with locking band
• High corrosion resistance using a laser welded 316L stainless steel inner liner and stainless steel outer case
• 25mm high density mineral wool insulation to maintain flue gas temperature, improve efficiency, and reduce condensation
• Low external surface temperature for enhanced safety
• Inner liner designed to allow maximum thermal expansion and prevent moisture ingress
• Lifetime guarantee for long term peace of mind

ICID Plus delivers reliable performance, advanced engineering, and long lasting construction, making it an excellent choice for a wide range of heating and flue system applications.
