Schiedel 6″ (150mm) Internal Diameter ICID Plus Ventilated Firestop Round 1PC G50

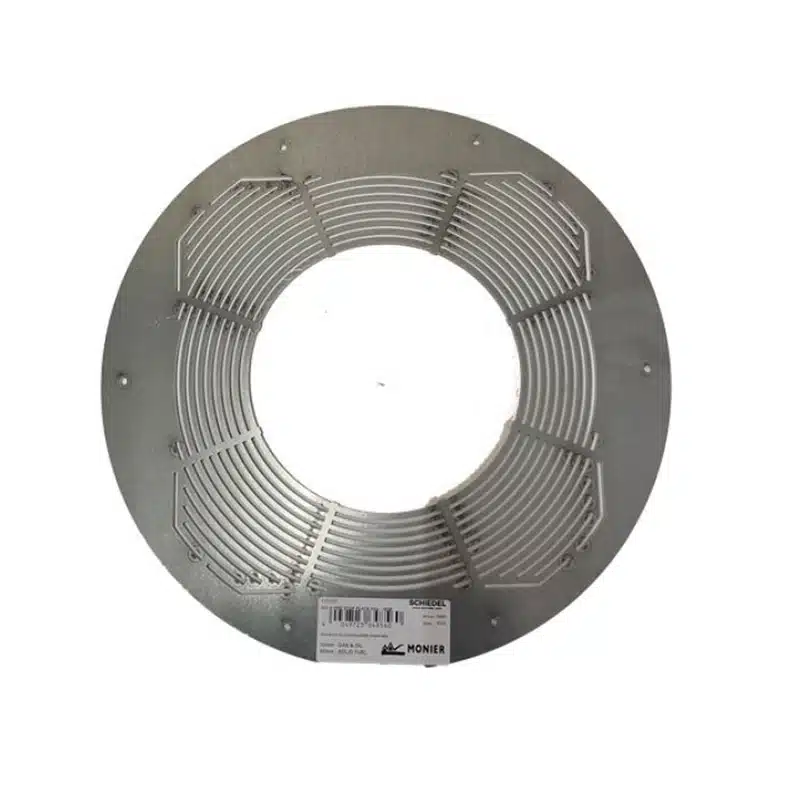

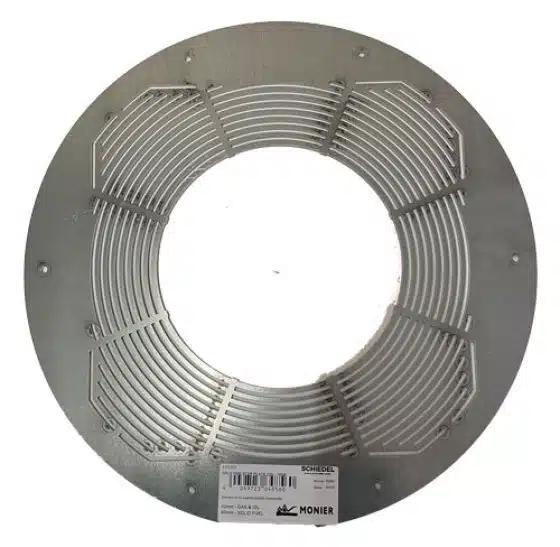

The ICID Plus 150mm Ventilated Fire Stop Round is a G50 ventilated fire stop and support plate designed for installations where a reduced clearance to combustibles is required. It allows the clearance to be reduced from the standard 60mm to 50mm and is suitable for use within floor spaces as well as within shafts, enclosures, or boxing in applications. This component helps ensure compliance while maintaining safe airflow and structural support around the chimney system.
The ICID Plus twin wall flue system is manufactured with advanced corrosion resistant construction. It features a laser welded 316L stainless steel inner liner combined with a durable stainless steel outer casing for long term reliability. The system is insulated with 25mm of high density rockwool to help maintain flue gas temperature, improve draft performance, and maximise efficiency.
All components connect using a secure twist lock bayonet jointing system and are fixed in place with a locking band. A rubber joint seal is included, making the system suitable for use with condensing and biomass appliances.
Designed as a twin wall insulated chimney system, ICID Plus is suitable for use with both open and closed stoves operating at temperatures up to 450°C. The load bearing outer casing supports the chimney structure while allowing the inner liner to expand independently, accommodating thermal expansion at every joint.
About ICID Plus
ICID Plus, manufactured by Schiedel, is a versatile twin wall chimney system designed for a wide range of domestic and commercial applications. It is suitable for Dry, Wet, and Positive Pressure installations and supports multiple fuel types.
Compatible appliances include gas, oil, wood, multi fuel, traditional stoves, pellet stoves, biomass systems, mini and micro CHP units, and condensing boilers designed for positive pressure operation.
Key Features of ICID Plus
- Internal diameters available in sizes 125mm and 150mm
- Secure twist lock bayonet jointing system with locking band
- High corrosion resistance using a laser welded 316L stainless steel inner liner and stainless steel outer case
- 25mm high density mineral wool insulation to maintain flue gas temperature, improve efficiency, and reduce condensation
- Low external surface temperature for enhanced safety
- Inner liner designed to allow maximum thermal expansion and prevent moisture ingress
- Lifetime guarantee for long term peace of mind
ICID Plus delivers reliable performance, advanced engineering, and long lasting construction, making it an excellent choice for a wide range of heating and flue system applications.
