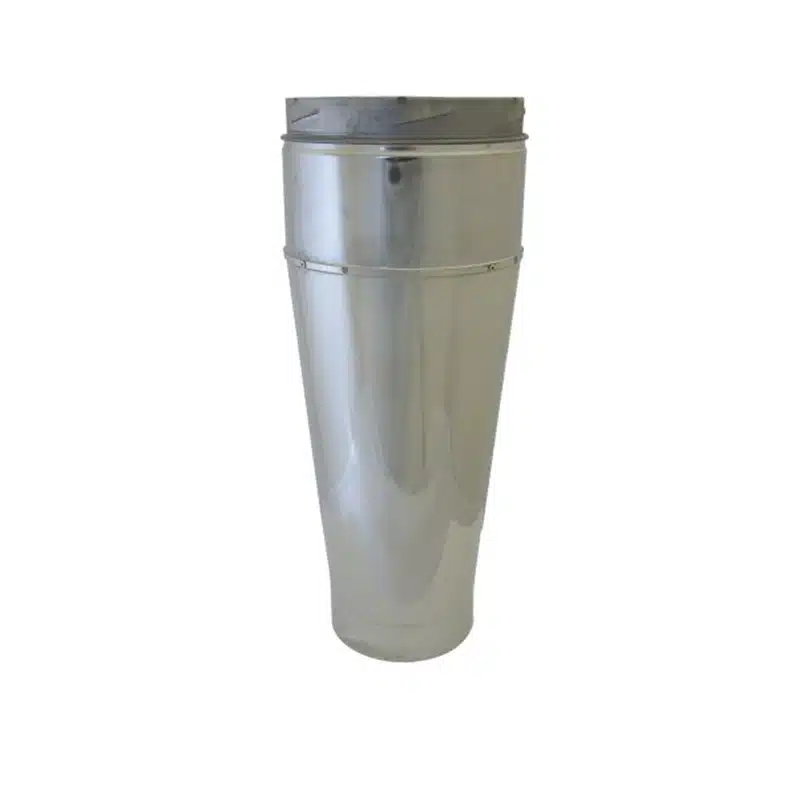

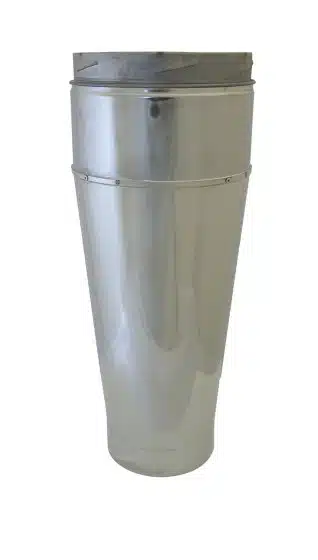

Schiedel 6″ (150mm) Internal Diameter ICID Plus Starter Pipe – 473mm Long
Tapered starting component to connect from flue pipe. Not for use directly from appliance. 473mm tall – plain stainless steel finish.
Twin wall flue system with advanced corrosion resistant design and construction using laser welded 316L stainless steel inner liner and a stainless steel case. Insulated with 25mm of high density rockwool maintaining flue gas temperature to maximise efficiency.
Components are jointed with a twist lock bayonet jointing system and secured by a locking band. The addition of a rubber joint seal facilitates the product for use on condensing and biomass appliances.
Twin wall insulated chimney system designed specifically for use on open or closed stoves with continuous operating temperatures of up to 450°C. The outer case is load bearing leaving the inner liner free to expand independently accommodating thermal expansion within each and every joint of the system.
About ICID Plus
ICID Plus, manufactured by Schiedel, is a versatile twin wall chimney system designed for a wide range of domestic and commercial applications. It is suitable for Dry, Wet, and Positive Pressure installations and supports multiple fuel types.
Compatible appliances include gas, oil, wood, multi fuel, traditional stoves, pellet stoves, biomass systems, mini and micro CHP units, and condensing boilers designed for positive pressure operation.
Key Features of ICID Plus
- Internal diameters available in sizes 125mm and 150mm
- Secure twist lock bayonet jointing system with locking band
- High corrosion resistance using a laser welded 316L stainless steel inner liner and stainless steel outer case
- 25mm high density mineral wool insulation to maintain flue gas temperature, improve efficiency, and reduce condensation
- Low external surface temperature for enhanced safety
- Inner liner designed to allow maximum thermal expansion and prevent moisture ingress
- Lifetime guarantee for long term peace of mind
ICID Plus delivers reliable performance, advanced engineering, and long lasting construction, making it an excellent choice for a wide range of heating and flue system applications.
