Schiedel 6" (150mm) Internal Diameter ICID Plus Haas And Sohn Stabiliser Adaptor

Schiedel 6″ (150mm) Internal Diameter ICID Plus Haas And Sohn Stabiliser Adaptor

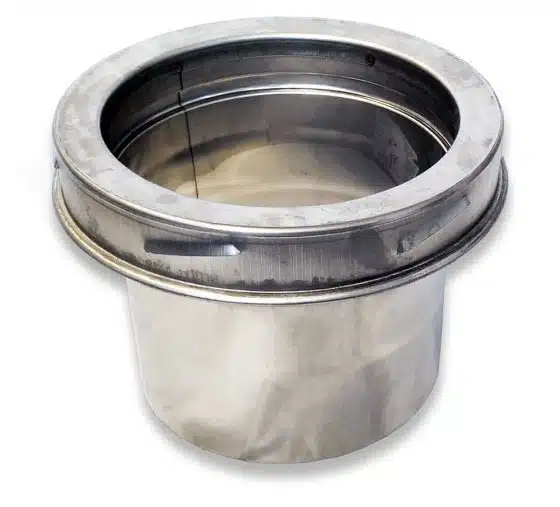

The ICID Plus 150mm Stabiliser Adaptor is designed to connect to an H & S stabiliser and is used in conjunction with a tee to provide a secure and stable connection within the flue system. Finished in stainless steel, it ensures durability, corrosion resistance, and a professional appearance.

This adaptor is part of the ICID Plus twin wall flue system, which is engineered with advanced corrosion resistant construction. It features a laser welded 316L stainless steel inner liner and a stainless steel outer casing for long-term reliability. The system is insulated with 25mm of high-density rockwool to maintain flue gas temperatures, maximise efficiency, and reduce condensation.

All ICID Plus components connect using a twist lock bayonet jointing system and are secured with a locking band for a strong and stable installation. The inclusion of a rubber joint seal makes the adaptor suitable for use with condensing and biomass appliances.

The ICID Plus twin wall insulated chimney system is suitable for open and closed stoves operating at temperatures up to 450°C. The outer casing bears the structural load while allowing the inner liner to expand independently, safely accommodating thermal expansion at every joint.

About ICID Plus

ICID Plus, manufactured by Schiedel, is a versatile twin wall chimney system designed for a wide range of domestic and commercial applications. It is suitable for Dry, Wet, and Positive Pressure installations and supports multiple fuel types.

Compatible appliances include gas, oil, wood, multi fuel, traditional stoves, pellet stoves, biomass systems, mini and micro CHP units, and condensing boilers designed for positive pressure operation.

Key Features of ICID Plus

• Internal diameters available in sizes 125mm and 150mm
• Secure twist lock bayonet jointing system with locking band
• High corrosion resistance using a laser welded 316L stainless steel inner liner and stainless steel outer case
• 25mm high density mineral wool insulation to maintain flue gas temperature, improve efficiency, and reduce condensation
• Low external surface temperature for enhanced safety
• Inner liner designed to allow maximum thermal expansion and prevent moisture ingress
• Lifetime guarantee for long term peace of mind

ICID Plus delivers reliable performance, advanced engineering, and long lasting construction, making it an excellent choice for a wide range of heating and flue system applications.
