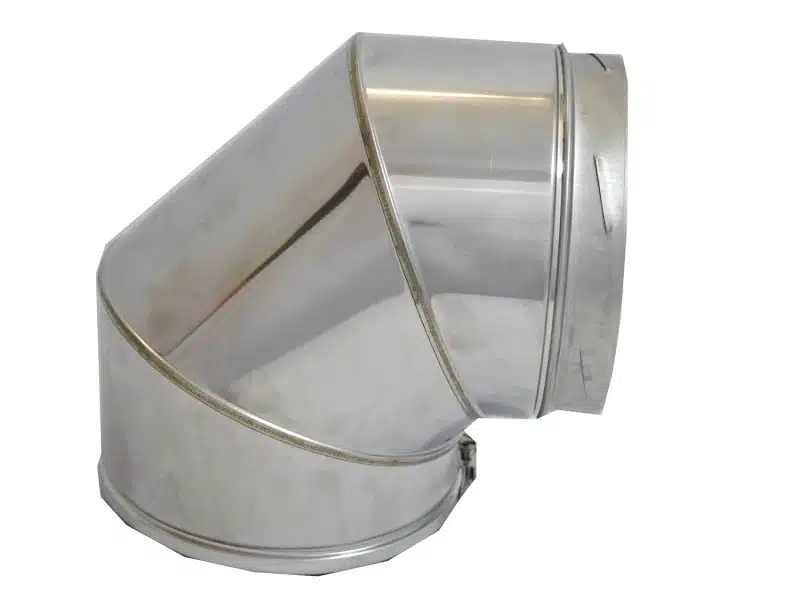

Schiedel 6″ (150mm) Internal Diameter ICID Plus 90 Degree Elbow
The ICID Plus 150mm 90 degree elbow is designed to create a change of direction within a twin wall flue system. The angle is measured from the vertical and the component is supplied complete with a locking band for a secure and stable installation. It features a plain stainless steel finish that matches the wider ICID Plus range.
This elbow forms part of the ICID Plus twin wall flue system, which is built with an advanced corrosion resistant design. It includes a laser welded 316L stainless steel inner liner combined with a durable stainless steel outer casing for long term reliability.
The system is insulated with 25mm of high density rockwool to help maintain flue gas temperature, improve appliance efficiency, and reduce condensation. Components connect using a twist lock bayonet jointing system and are secured with a locking band. A rubber joint seal is also included, making the system suitable for use with condensing and biomass appliances.
ICID Plus is a twin wall insulated chimney system designed for use with open and closed stoves operating at temperatures up to 450°C. The load bearing outer casing allows the inner liner to expand independently, accommodating thermal expansion at every joint and extending the life of the flue system.
Designed to provide a smooth and efficient change of direction within a twin wall flue installation, it supports optimal flue gas flow while maintaining full compatibility with the ICID Plus chimney system.
About ICID Plus
ICID Plus, manufactured by Schiedel, is a versatile twin wall chimney system designed for a wide range of domestic and commercial applications. It is suitable for Dry, Wet, and Positive Pressure installations and supports multiple fuel types.
Compatible appliances include gas, oil, wood, multi fuel, traditional stoves, pellet stoves, biomass systems, mini and micro CHP units, and condensing boilers designed for positive pressure operation.
Key Features of ICID Plus
- Internal diameters available in sizes 125mm and 150mm
- Secure twist lock bayonet jointing system with locking band
- High corrosion resistance using a laser welded 316L stainless steel inner liner and stainless steel outer case
- 25mm high density mineral wool insulation to maintain flue gas temperature, improve efficiency, and reduce condensation
- Low external surface temperature for enhanced safety
- Inner liner designed to allow maximum thermal expansion and prevent moisture ingress
- Lifetime guarantee for long term peace of mind
ICID Plus delivers reliable performance, advanced engineering, and long lasting construction, making it an excellent choice for a wide range of heating and flue system applications.
