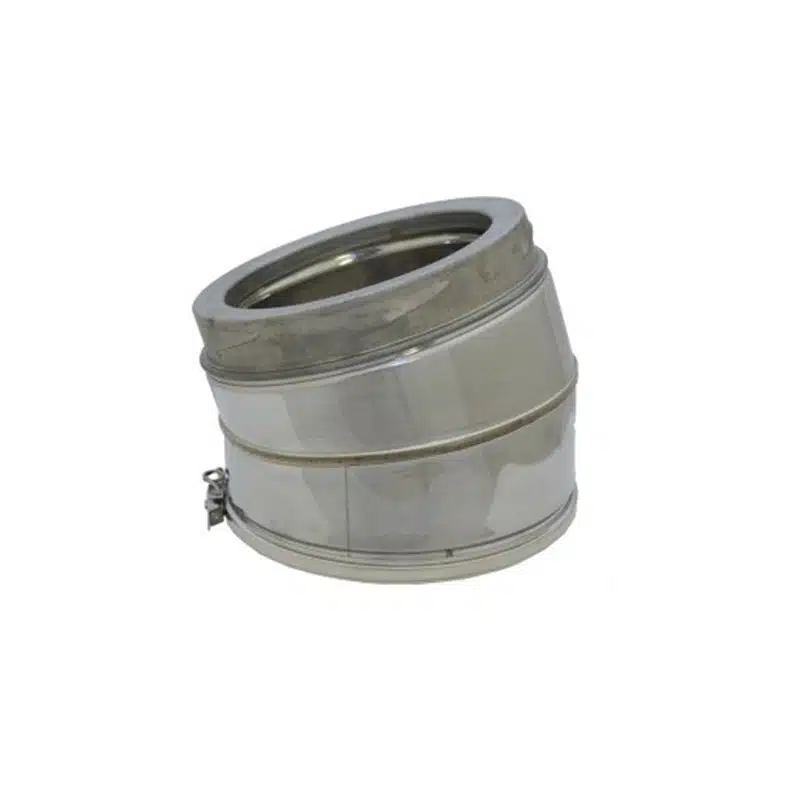

Schiedel 6" (150mm) Internal Diameter ICID Plus 15 Degree Elbow

Schiedel 6″ (150mm) Internal Diameter ICID Plus 15 Degree Elbow

The ICID Plus 150mm 15 degree elbow is designed to create a gentle change of direction in a twin wall flue system. The angle is measured from the vertical and the elbow is supplied with a locking band for a secure, reliable connection. It features a plain stainless steel finish that complements the full ICID Plus range.

This elbow is part of the ICID Plus twin wall flue system, built for advanced corrosion resistance and long term performance. It includes a laser welded 316L stainless steel inner liner and a durable stainless steel outer casing.

The system is insulated with 25mm of high density rockwool to maintain flue gas temperature, maximise efficiency, and reduce condensation. Components connect using a twist lock bayonet jointing system and are secured with a locking band. A rubber joint seal is included, making the elbow suitable for use with condensing and biomass appliances.

ICID Plus is a twin wall insulated chimney system designed for use with open and closed stoves at temperatures up to 450°C. The load bearing outer casing allows the inner liner to expand independently, accommodating thermal expansion at every joint for improved durability and long term reliability.

About ICID Plus

ICID Plus, manufactured by Schiedel, is a versatile twin wall chimney system designed for a wide range of domestic and commercial applications. It is suitable for Dry, Wet, and Positive Pressure installations and supports multiple fuel types.

Compatible appliances include gas, oil, wood, multi fuel, traditional stoves, pellet stoves, biomass systems, mini and micro CHP units, and condensing boilers designed for positive pressure operation.

Key Features of ICID Plus

• Internal diameters available in sizes 125mm and 150mm
• Secure twist lock bayonet jointing system with locking band
• High corrosion resistance using a laser welded 316L stainless steel inner liner and stainless steel outer case
• 25mm high density mineral wool insulation to maintain flue gas temperature, improve efficiency, and reduce condensation
• Low external surface temperature for enhanced safety
• Inner liner designed to allow maximum thermal expansion and prevent moisture ingress
• Lifetime guarantee for long term peace of mind

ICID Plus delivers reliable performance, advanced engineering, and long lasting construction, making it an excellent choice for a wide range of heating and flue system applications.
