Schiedel 5" (125mm) ICID Plus 90 Degree Inspection Bend

Schiedel 5″ (125mm) ICID Plus 90 Degree Inspection Bend

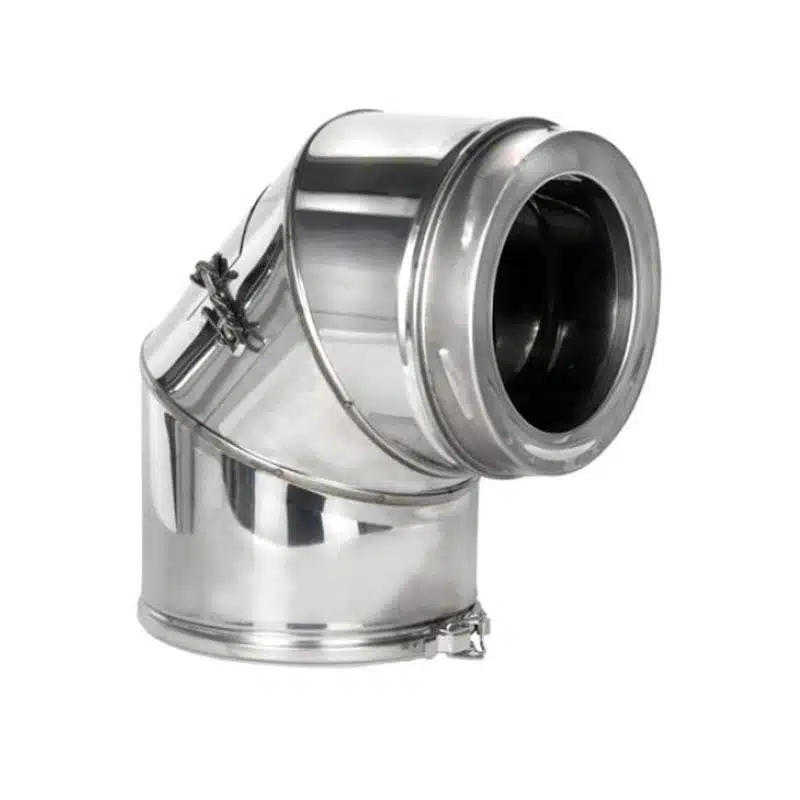

The ICID Plus 125mm 90 degree inspection bend is designed to provide a smooth change of direction within a connecting flue pipe system. It features a removable cover plate positioned on the central section, allowing easy access for inspection, servicing, and routine cleaning.

This component is part of the ICID Plus twin wall flue system, which is engineered with advanced corrosion resistant materials. It includes a laser welded 316L stainless steel inner liner and a durable stainless steel outer casing for long term performance.

The flue is insulated with 25mm of high density rockwool to help maintain flue gas temperatures, improve overall efficiency, and reduce condensation. All components connect using a secure twist lock bayonet jointing system and are reinforced with a locking band to ensure a reliable and stable installation. A rubber joint seal is also included, making the system suitable for use with condensing and biomass appliances.

The ICID Plus twin wall insulated chimney system is suitable for use with both open and closed stoves operating at temperatures up to 450°C. The load bearing outer casing allows the inner liner to expand independently, accommodating thermal expansion at every joint and improving the durability of the system.

It is ideal for maintaining efficient flue gas flow while ensuring compatibility with the wider ICID Plus chimney system.

About ICID Plus

ICID Plus, manufactured by Schiedel, is a versatile twin wall chimney system designed for a wide range of domestic and commercial applications. It is suitable for Dry, Wet, and Positive Pressure installations and supports multiple fuel types.

Compatible appliances include gas, oil, wood, multi fuel, traditional stoves, pellet stoves, biomass systems, mini and micro CHP units, and condensing boilers designed for positive pressure operation.

Key Features of ICID Plus

• Internal diameters available in sizes 125mm and 150mm
• Secure twist lock bayonet jointing system with locking band
• High corrosion resistance using a laser welded 316L stainless steel inner liner and stainless steel outer case
• 25mm high density mineral wool insulation to maintain flue gas temperature, improve efficiency, and reduce condensation
• Low external surface temperature for enhanced safety
• Inner liner designed to allow maximum thermal expansion and prevent moisture ingress
• Lifetime guarantee for long term peace of mind

ICID Plus delivers reliable performance, advanced engineering, and long lasting construction, making it an excellent choice for a wide range of heating and flue system applications.
