Jotul I520FR Insert Woodburning Stove With Front And Right Glass

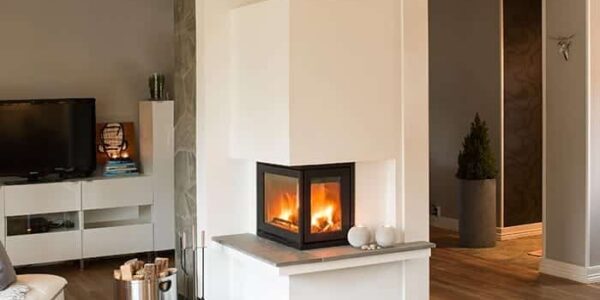

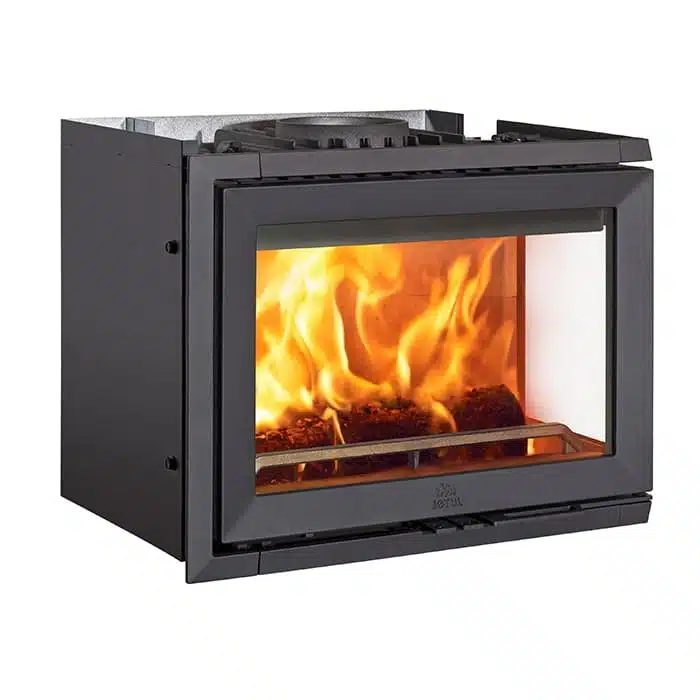

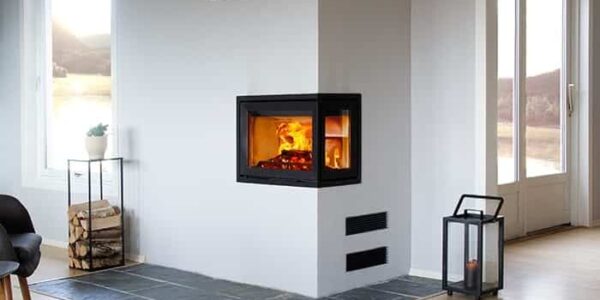

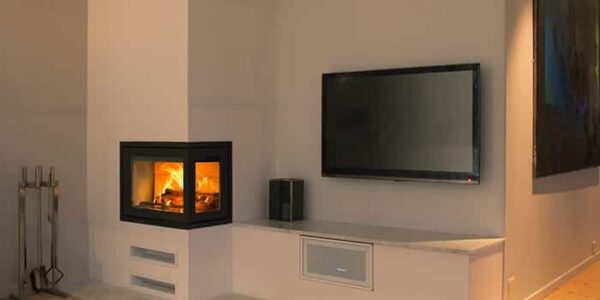

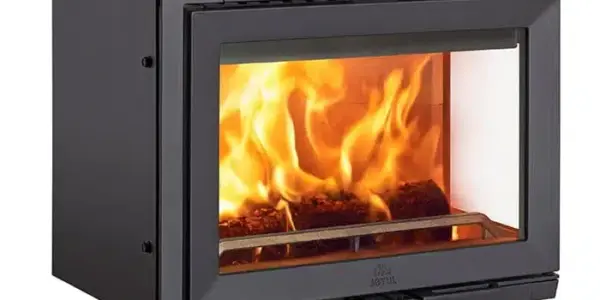

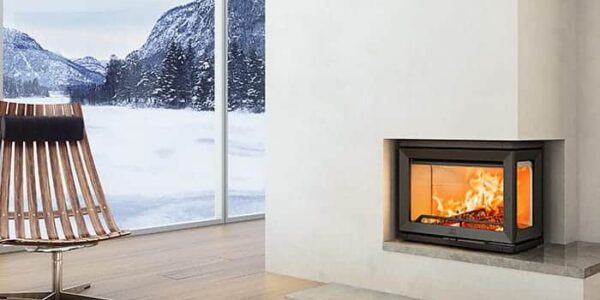

The Jøtul I 520 FR is a contemporary inset woodburning stove that combines Scandinavian design with impressive heating performance. Featuring glass across the front and right-hand side, it offers an extended view of the flames, making it an excellent choice for corner fireplaces and open-plan living spaces where the fire can be enjoyed from different angles.

Manufactured from durable cast iron and finished in black paint, the Jøtul I 520 FR offers robust construction with clean, modern styling. Its light-coloured enamelled burn plates create a bright interior that enhances the appearance of the flames, while the heat-reflecting glass coating helps keep the viewing panels cleaner and supports efficient combustion.

With a nominal heat output of 7.5kW and an efficiency rating of 77%, this inset woodburner delivers effective warmth for a variety of living spaces. Despite its generous firebox, the I 520 range is designed to operate effectively at lower heat outputs, allowing you to enjoy the flames without always running the stove at full power.

Designed to fit into a suitable fireplace opening, the Jøtul I 520 FR accepts logs up to 500mm long and features a 150mm flue outlet, with top or rear flue options to suit the installation. An external air connection is also available, providing additional flexibility when planning your fireplace.

Key Features

• Contemporary Scandinavian Design: Combines clean, modern styling with Jøtul’s renowned Norwegian craftsmanship to create an elegant fireplace feature.
• 7.5kW Nominal Heat Output: Delivers powerful, comfortable warmth for a range of living spaces.
• 77% Efficiency: Designed to provide effective heating while making efficient use of wood fuel.
• Front and Left-Side Glass Panels: The corner-glass design provides an impressive view of the flames from two sides, making it ideal for corner fireplaces and open-plan interiors.
• Light-Coloured Enamelled Burn Plates: Bright internal panels create a clean, airy appearance inside the firebox, even when the stove is not in use.
• Heat-Reflecting Glass: Specially treated glass helps keep the viewing panels cleaner while supporting efficient combustion.
• Effective at Lower Heat Output: Despite its generous firebox, the I 520 FL can operate effectively at outputs as low as 3.5kW.
• Inset Fireplace Installation: Designed to integrate into a suitable fireplace opening for a streamlined, built-in finish.
• Clean-Burning Technology: Engineered to support efficient combustion and reduce emissions.
• Accepts Logs up to 50cm: The spacious firebox accommodates larger logs for convenient refuelling.
• External Air Supply: Supports installations requiring a dedicated external combustion air connection.
• Flexible Installation Options: Compatible installation frames and accessories can help achieve a neat, professional finish, subject to the fireplace design and manufacturer’s requirements.

Specifications

Model Jøtul I 520 FL
Stove type Inset woodburning stove
Fuel type Wood
Nominal heat output 7.5kW
Efficiency 77%
Height 499mm
Width 670mm
Depth 431mm
Weight 141kg
Maximum log length 500mm
Flue outlet diameter 150mm
Flue outlet positions Top or rear
Construction Cast iron
Finish Black paint
Glass configuration Front glass panel and Right Panel
Internal burn plates Light-coloured enamelled
Glass technology Heat-reflecting coating
Combustion system Clean burn
External air connection Yes
DEFRA exempt Yes
