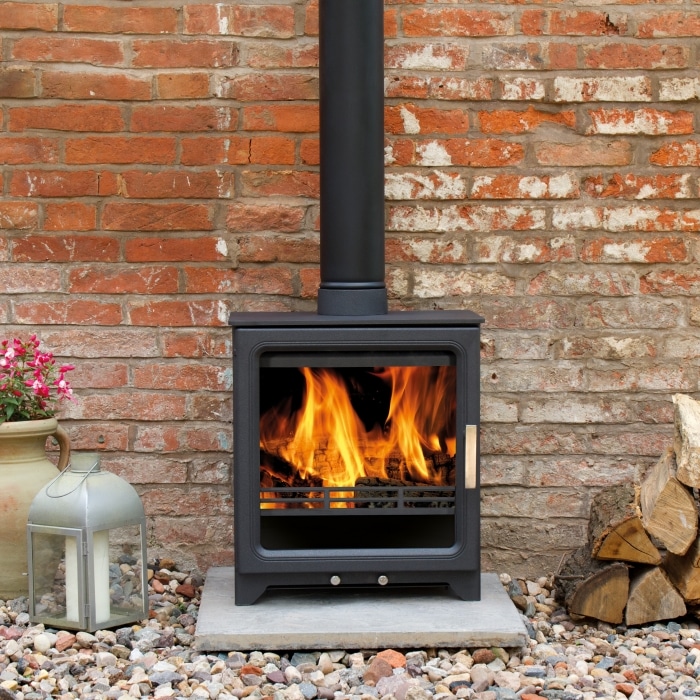

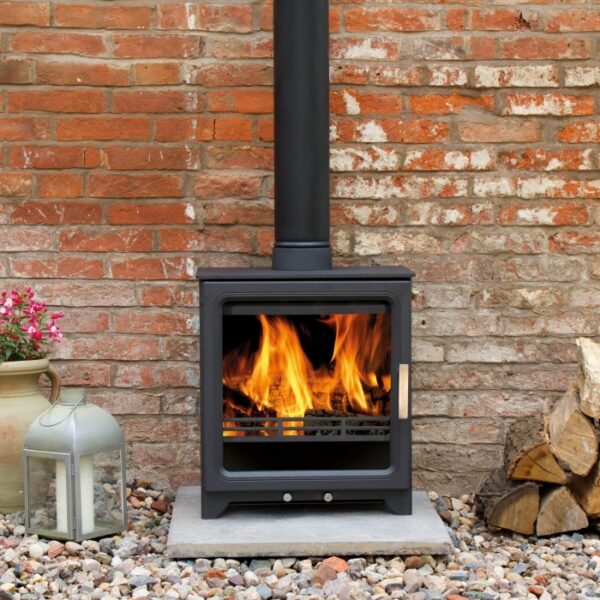

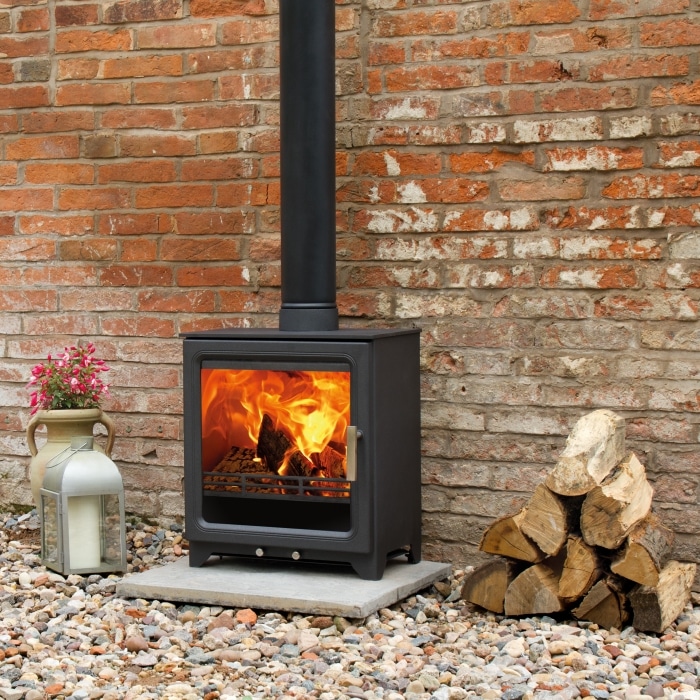

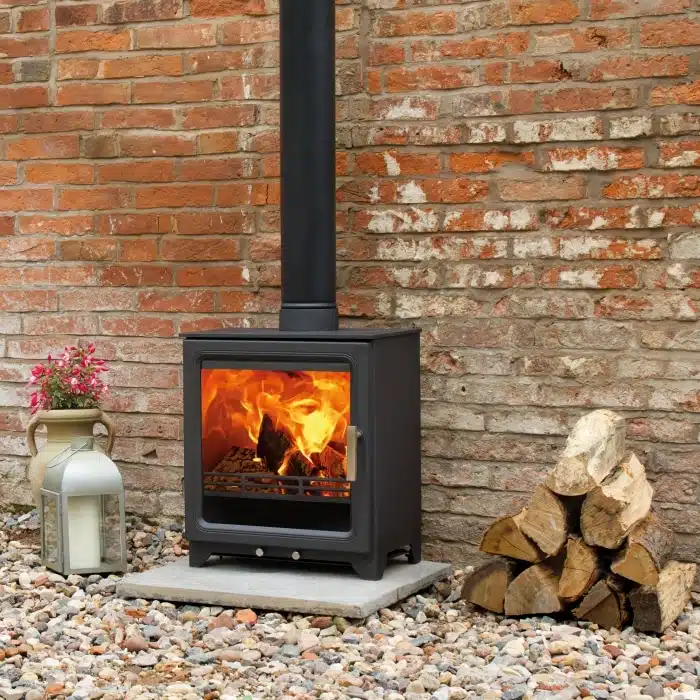

The ACR Woodpecker WP5Plus is a practical stove with clean proportions and an easy-to-place black finish. With a 5kW nominal heat output, it brings the atmosphere of a real fire into the room while giving you a clear focal point to arrange the space around.
The wider firebox gives the WP5Plus a generous flame picture and room for logs up to 400mm long. Its 5kW nominal output makes the extra width useful for appearance and loading space, rather than simply adding more heat.
The Multi Fuel firebox gives you a choice of seasoned wood or the approved smokeless fuels listed in the manual. It accepts logs up to 400mm long, so you can choose a practical fuel supply without losing the familiar experience of a real log fire.
An airwash system helps reduce deposits on the glass, keeping the view of the fire clearer during normal use. The air controls let you adjust the burn as the fire becomes established, while the ashpan makes routine clearing easier once the stove has cooled.
Top and rear flue connections give your installer flexibility when planning the position of the stove. The dimensions and clearances below help with an initial comparison, with the final hearth, ventilation and flue arrangement checked for your room before installation.
| Fuel | Seasoned wood and approved smokeless fuels |
|---|---|
| Nominal heat output | 5kW |
| Height | 550mm |
| Width | 490mm |
| Depth | 314mm |
| Weight | 80kg |
| Construction | Steel and cast iron |
| Efficiency | 81.3% net |
| Maximum log length | 400mm |
| Flue collar diameter | 125mm |
| Flue exit | Top or rear |
| Hearth | Minimum 12mm non-combustible hearth, sized and installed to the manual |
| Combustible clearance – sides | 500mm |
| Combustible clearance – rear | 400mm |
| Combustible clearance – above | 375mm |
| Clearance configuration | Standard installation with single-wall connecting flue; other arrangements must follow the manual |
| Smoke-control suitability | DEFRA exempt for burning wood when installed and operated to the applicable conditions |
| Ecodesign | Ecodesign model |
| Warranty | 5 years on stove body castings/steel panels when bought from an ACR recommended retailer; installation, use and maintenance conditions apply. Consumables and finish excluded. Otherwise 12 months under ACR terms. |
Installation must follow the manual for the supplied model. Stove-body distances do not replace the separate clearance requirements for the flue pipe.
