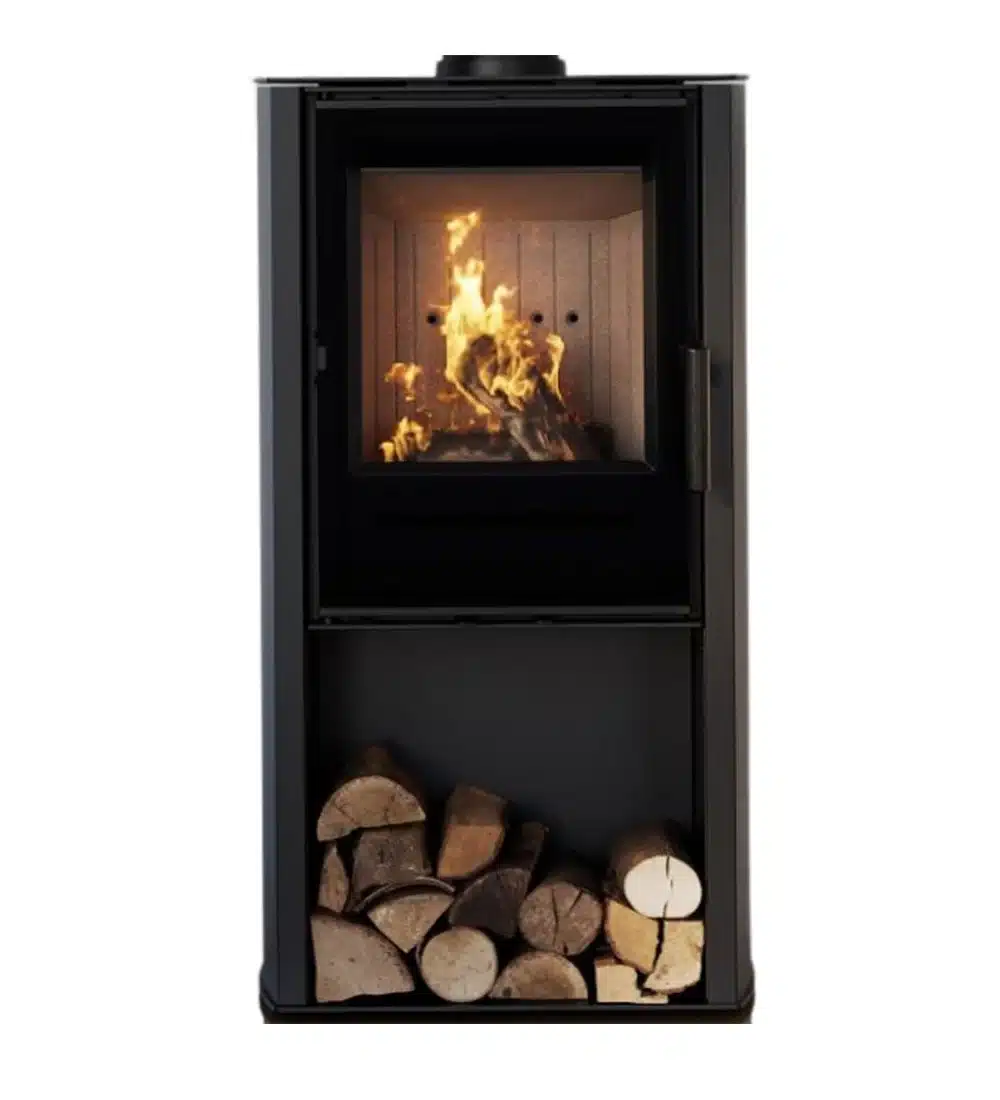

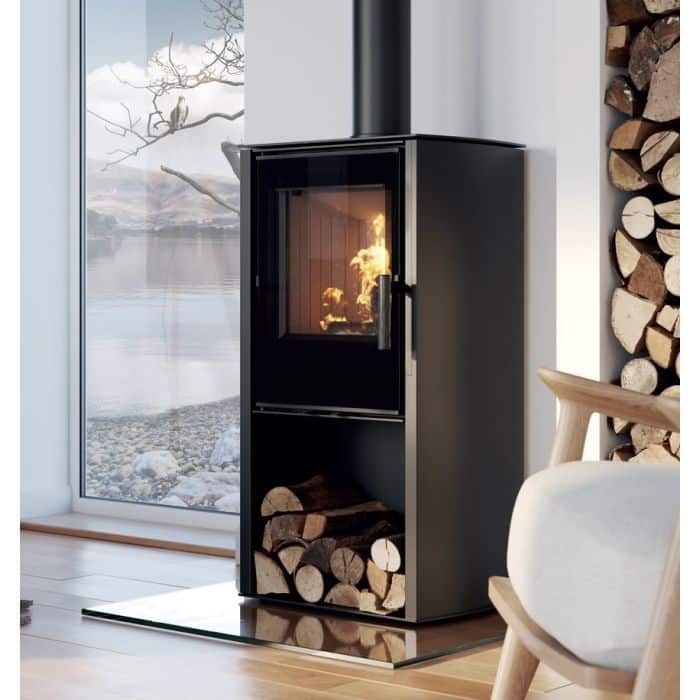

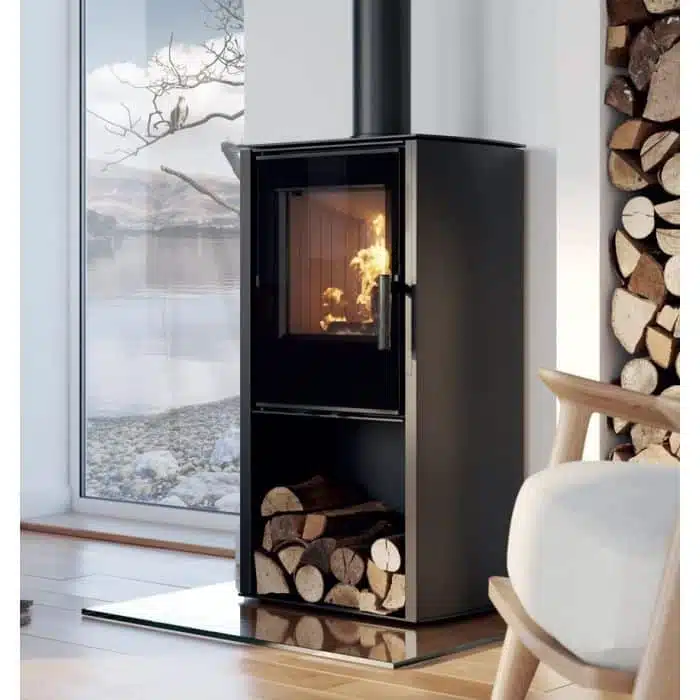

ACR Osprey 5 Woodburning Stove

The ACR Osprey 5 is a contemporary stove with a broad window and a strong view of the wood fire. With a 5kW nominal heat output, it brings the atmosphere of a real fire into the room while giving you a clear focal point to arrange the space around.

The log store beneath the firebox adds height and provides a convenient place to keep a small supply of wood. Above it, the broad door gives the fire plenty of visual space, so the stove looks at home as a freestanding feature or within a generous opening.

Designed for burning wood, the firebox accepts logs up to 330mm long. Using properly seasoned logs with a moisture content below 20% helps the fire burn well and makes it easier to enjoy the flames through the glass.

An airwash system helps reduce deposits on the glass, keeping the view of the fire clearer during normal use. The air controls let you adjust the burn as the fire becomes established, while the ashpan makes routine clearing easier once the stove has cooled.

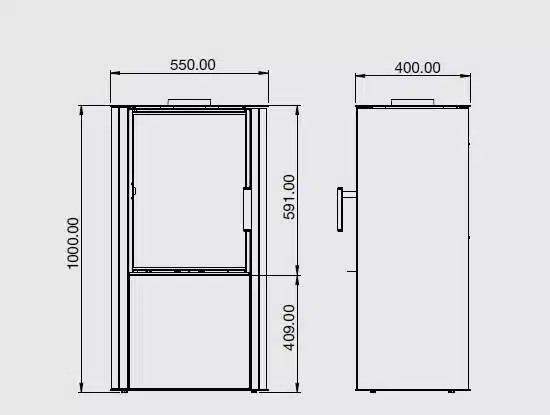

Top and rear flue connections give your installer flexibility when planning the position of the stove. The dimensions and clearances below help with an initial comparison, with the final hearth, ventilation and flue arrangement checked for your room before installation.

Key features

• 5kW nominal output: A clear guide to the stove's heating capacity when comparing it with the needs of your room.
• Wood fire: Designed for seasoned logs, with a moisture content below 20%.
• Generous fire view: The glazed door keeps the changing flames at the centre of the design.
• Airwash system: Helps reduce deposits on the glass so the fire remains easier to see.
• Logs up to 330mm: A useful loading length when choosing and storing your firewood.
• Top or rear flue exit: Gives your installer options when connecting the stove to a suitable flue.
• Log-store base: Adds useful fuel storage and lifts the firebox higher into view.
• Smoke-control suitability: May burn wood in a smoke-control area when the exemption conditions and operating instructions are followed.
• 10-year body warranty: Manufacturer cover for qualifying purchases, subject to the conditions and exclusions shown below.

Specifications

Installation must follow the manual for the supplied model. Stove-body distances do not replace the separate clearance requirements for the flue pipe.
